Csplice

Features Csplice

If youve ever made a splice layout cheat sheet you may find this app handy.
Quickly enter cable counts using the cable Id picker.
Set your cable grouping configurations then click the gold Csplice button to have the app compare the relationship of all entered cable counts.
The app will then break down counts into your entered grouping configuration and display a colored cable block next to counts to show which cable to look for its matching count to splice to.
Latest update allows the user to click on a matched count (noted by the matching cable colored block).
When clicked the app will filter only show matching counts groups highlighted in orange.
If a groups has more than one count the app will further break down the count into individual fibers/pairs.
See image #5 for an example.Printable splice layouts!
Click the "Print" icon button on the tool bar.
Once the print manager pops up select "Save as PDF" and save it.
Use your devices "Files" app and navigate to Csplice.pdf file and share the pdf file by email to a printer connected computer.This app shall be used only as a handy secondary reference tool.
Helpful documentation and conversation blog link.
https://tntapps.blogspot.com/2021/04/csplice.htmlCsplice works with either fiber optic or copper pair cable counts.Csplice works with the latest versions of my "Fiber Optic Color Code" and "25 Pair Color Code" apps as well.

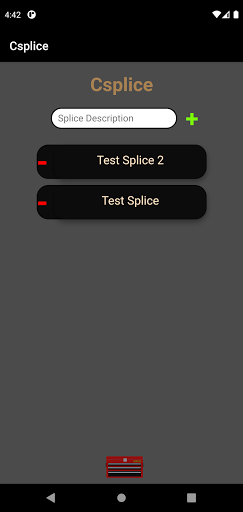

After entering a cable count into a cable column input click the "CC" button to have the app open either the FOCC or 25pr CC app with the counts automatically entered for youOpening Screen:Enter a short name/description of splice and click green "+" buttonThen select your newly named splice button to begin entering cable countsApp saves up to 10 splices, when an 11th splice is entered the bottom splice in the list is deletedClicking the red "-" button deletes selected splice with confirmationCsplice screen:Enter your cable counts into any of the cable inputsSet your group type configurations in the upper input boxesexample of group type configurations (but not limited to):6 , 8, 12, 12-1, 25, 25-1, 144-12, 288-12, 600-25, 100-25, 100-25+, 2400-100-25Clicking the "Say It" button reads back counts to user to verify correct count entryClick the round gold colored Csplice button at the bottom right corner of the screen.
This will put the app into Csplice mode which displays a colored block to show cable count relations between the groups pairs/fibers of all entered cablesWhen a cable has been "Parsed" the app user can overwrite the "Cable Size = ###" box text with their own short note.
example: "48F West" "600pr North" etc...After clicking the Csplice button an empty check box is activated in the top left corner of each cable count.
Checking a cable count check box will filter out all unrelated groups and displays only all other related cables with their related group counts.To edit a cable count after clicking gold round button.
Uncheck any filtered cable and click any clear button 2x.
Beware that 3rd click of the clear button clears the cable count.Click on the "CC" button to have the app open either my Fiber Optic Color Code or 25 Pair Color Code app , depending on group type configuration, with the count automatically put into the opened app.
If user doesnt have either app installed App Store will open to purchase / install it.This app works with the splice://icc?
url scheme with the optional parameters of name, cab1, cab2, cab3, cab4, cab5, cab6, cab7, cab8, cab9, cab10This url scheme can be used by other applications (email, web page or app) to open this app with the parameters used to fill in the data automatically of a splice.example:splice://icc?name=Test%20splice&cab1=1234N,1-864&cab2=1234N,289-432%0AA,1-24%0A1234N,1-120&cab3=B,1-8%0A1234N,631-632%0AB,11-24%0A1234N,121-144
